Dinner is served: "Zucchini surprise…"


After harvesting, the zucchini were first packed in boxes and then stowed on the loading areas of two trailers. Quite clearly, nobody spared a thought for securing the zucchini on the loading areas. Perhaps this was because it was only a short distance from the field to the farm… "After all, nothing will happen over that short distance!"

But nobody told the zucchini that. These were lying in their boxes and didn’t know the road. Perhaps it was rather like a driving lesson, where the driving instructor always says "keep driving straight on unless I say otherwise." The tractor to which the two trailers were attached set off for the farm. They arrived at a crossroads, where the driver indicated right and turned off.
Of course, the zucchini didn’t realize what was going on because of the dark green curtains around them. So they just carried straight on and all piled up against the left-hand tarpaulin. And, true to the motto "together we are strong," they were stronger than the tarpaulin.

The tarpaulin pulled free of the rail at the top and opened up the way to freedom. The zucchini grasped the opportunity and escaped together with their boxes. Most of them ended up on the left-turn lane (where they thought they would hinder the traffic least).

Photo of the month - April 2011

Figure 1  [Glaser]

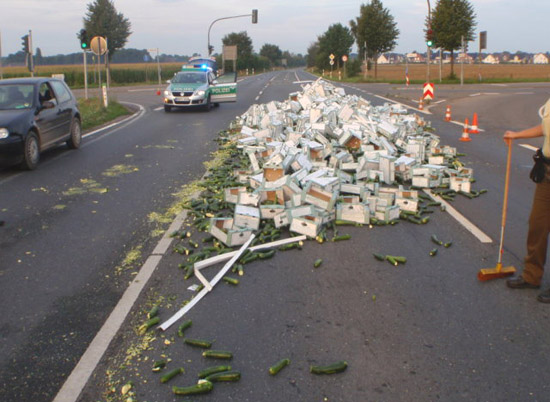

Fortunately, no other vehicle was waiting here or driving past. The consequences could have been fatal if you imagine that the other vehicle may have been a cyclist.

Good fortune was had by all! But that was no thanks to the tractor driver. Instead, it was pure chance.

So let us have a look at the vehicle and its trailers:


Photo of the month - April 2011

Figure 2  [Glaser]

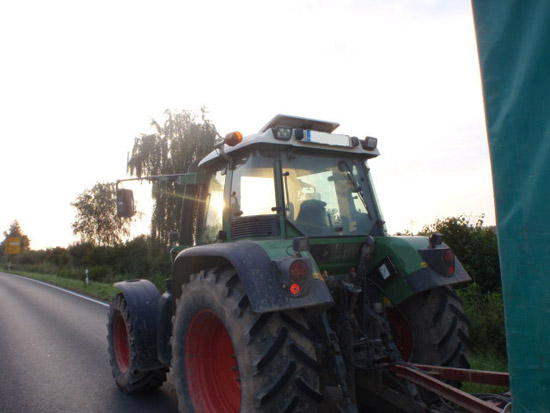

A tractor with two trailers.


Photo of the month - April 2011

Figure 3  [Glaser]

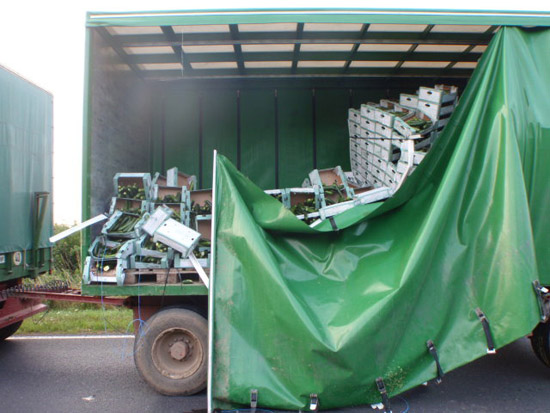

The tarpaulin curtains on the second trailer opened.


Photo of the month - April 2011

Figure 4  [Glaser]

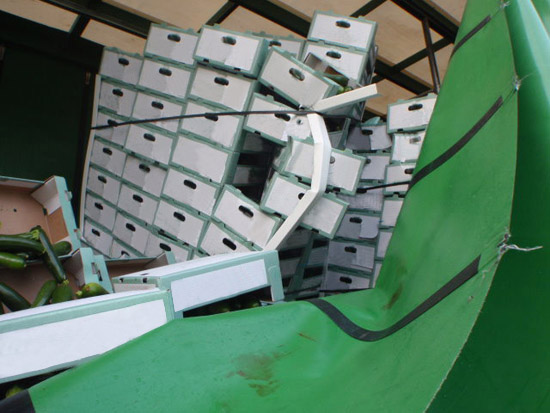

Figure 4 shows what happened. If you have a look at the tarpaulin, you can see that all the rollers that normally hold the tarpaulin in the guiderail of the roof have broken free. This is a clear indication that this tarpaulin is not suitable for securing a load to the side. It clearly serves only to protect the load from the elements. When planning and implementing the measures for load securing, it is necessary to proceed on the assumption that the tarpaulin is not even present. After all, it plays no role whatsoever in securing the load.

Now let us have a look at the load units!
The boxes were stacked chimney-style on pallets and stowed on top of each other. Cardboard bracing corners were fitted to the outer corners to improve the stability of the load unit. A rubber strap was placed around the top third of the load unit to increase its stability. And measures for securing the load? None whatsoever!


And in the final analysis, this was where the problem lay. The load tipped as the vehicle turned the corner and fell onto the tarpaulin. This was unable to absorb the forces exerted on it and broke free of its anchorage.
And so the zucchini were able to make their escape.

The superstructure of the vehicle (a curtainsider) is not sufficiently stable for transporting this load and the driver should never have embarked on the journey with an unsecured load.

So what can be done to transport this load safely?

As far as we see it, there are two options:

The use of stable load units, such as mesh crates or similar makes it possible to form strong load units that can be secured with tie-down lashings as necessary.
The somewhat soft load units can be loaded in a rigid trailer body (box body) which is able to take on the role of securing the load to the side.

If these proposals are followed, the zucchini stand a good chance of reaching their intended destination and being used for their intended purpose.


Photo of the month - April 2011

Figure 5  [Glaser]

Note:

Is it in fact legal to tow two trailers?

According to Section 32 a of the StVZO (German road traffic licensing regulations) it is permitted to tow two trailers behind tractor vehicles (including this agricultural tractor) provided that the maximum permitted length that applies for a single trailer is not exceeded (18.00 m or 18.75 m under certain circumstances ——- see Section 32 of the StVZO).

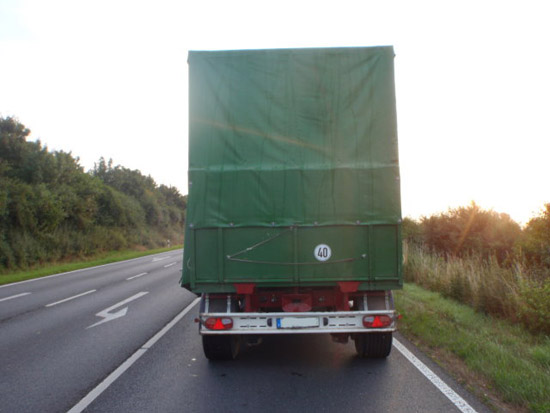

Why is a sign showing 40 attached to the rear of the vehicle?

Photo of the month - April 2011

According to Section 58 (3) no. 2 StVZO, the following vehicles, among others, must be fitted with maximum speed signs:
Trailers with a maximum permitted speed of less than 100 kph, as dictated by their design.

The design of these trailers means that they have a maximum permitted speed of 40 kph. This sign is therefore required. It must be attached to the rear of the individual vehicles.
